Description:

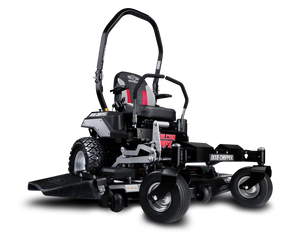

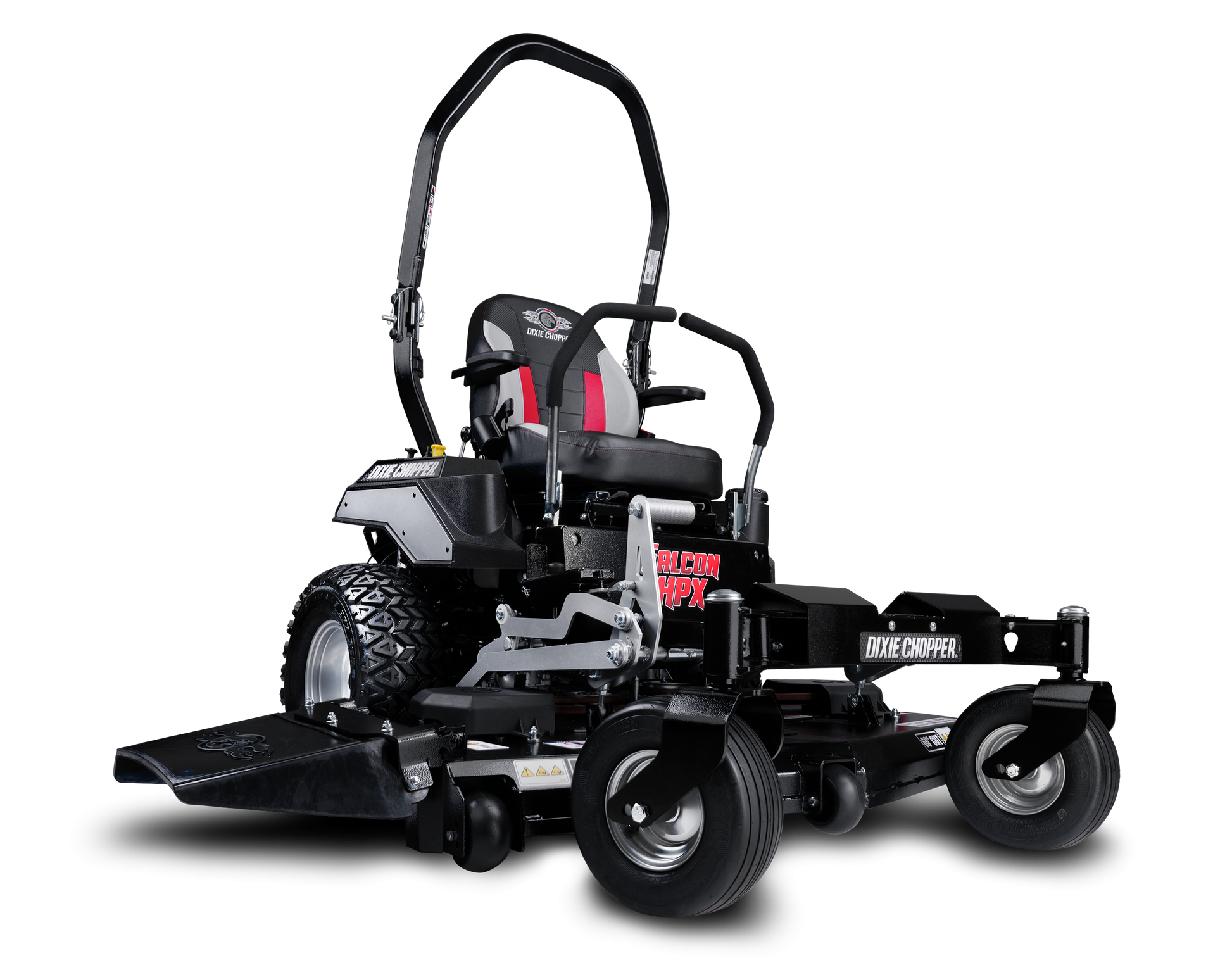

The Falcon HPX is the new standard in entry-level commercial mowing with high-quality features, robust durability, and operator comfort and convenience.

Features:

Proven Power – Equipped with 24 horsepower Kawasaki® FT engines for years of trusted reliability and performance.

Deep Deck – The Falcon HPX deck features a deep 10 gauge shell to tackle taller grass with ease.

Commercial Drive System – Hydro-Gear ZT-3100 transaxles offer steel-cut gears, charge pumps, and shock valves for extended drivetrain performance.

Total Comfort – The padded and over-sized bolstered seat hugs your torso for ultimate comfort.

Peer® Turf Xtreme™ Spindles – Maintenance free and constructed of high-strength ductile iron.

R.O.P.S. – Roll-over protection system comes standard to keep operators safe.

Charge and Mow – Keep your mobile device and accessories charged with a USB charging port.

Ready to Accessorize – The Falcon HPX is ready to add a suite of accessories including Springer Forks, suspension seat, OCDC, mulch kit, light kit, striping kit, and more.

Specifications:

Engine

• Manufacturer: Kawasaki® FT
• Horsepower: 24 hp
• Displacement: 726 cc
• Air Cleaner: 2-stage
• Cooling: Air-cooled
• Starter: Electric
• Engine Warranty: 3 years

Drive System

• Transmission: Dual hydrostatic Hydro-Gear® ZT-3100
• Ground Speed: 8 mph
• Parking Brake: Integrated in transaxle
• Towing Capacity: 200 lbs

Mower Deck

• Deck Size: 54 in.
• Acres per Hour: 3.4
• Cutting Height: 1.5 – 5 in.
• OCDC (Discharge Chute): Optional, hand-operated
• Height Adjustments: Manual lift, ½ in. increments
• Deck Engagement: Warner® 150 ft-lbs
• Construction: 10-ga formed & welded
• Blades: (3) – 2.5 in. x 19 in.
• Blade Tip Speed: ~18,500 fpm
• Spindles: 1.25 in. machined shaft
• Spindle Housings: Peer® Turf Xtreme™ ductile iron (sealed)
• Anti-Scalp Rollers: 3
• Pulleys: 7-ga vented split steel, 3/8 in. deep groove

General

• Battery: 12 Volt, 300 cca
• Digital Display: Hour meter, tachometer
• Fuel Capacity: 5 gallons
• Rear Tires: 22 x 11-10 – 350 Mag
• Front Tires: 13 x 6.5-6
• Frame: Welded 1" x 2", 2" x 2" tube, 11-ga formed
• Floor Pan: Removable, steel
• Seat: High-back adjustable padded seat w/ armrests
• Springer Forks: Optional accessory

Dimensions

• Height (rollbar down): 51.5 in.
• Height (rollbar up, optional): 71.1 in.
• Width (chute down): 69.6 in.
• Width (chute up): 55.4 in.
• Length: 74.1 in.
• Weight: 880 lbs
