Description:

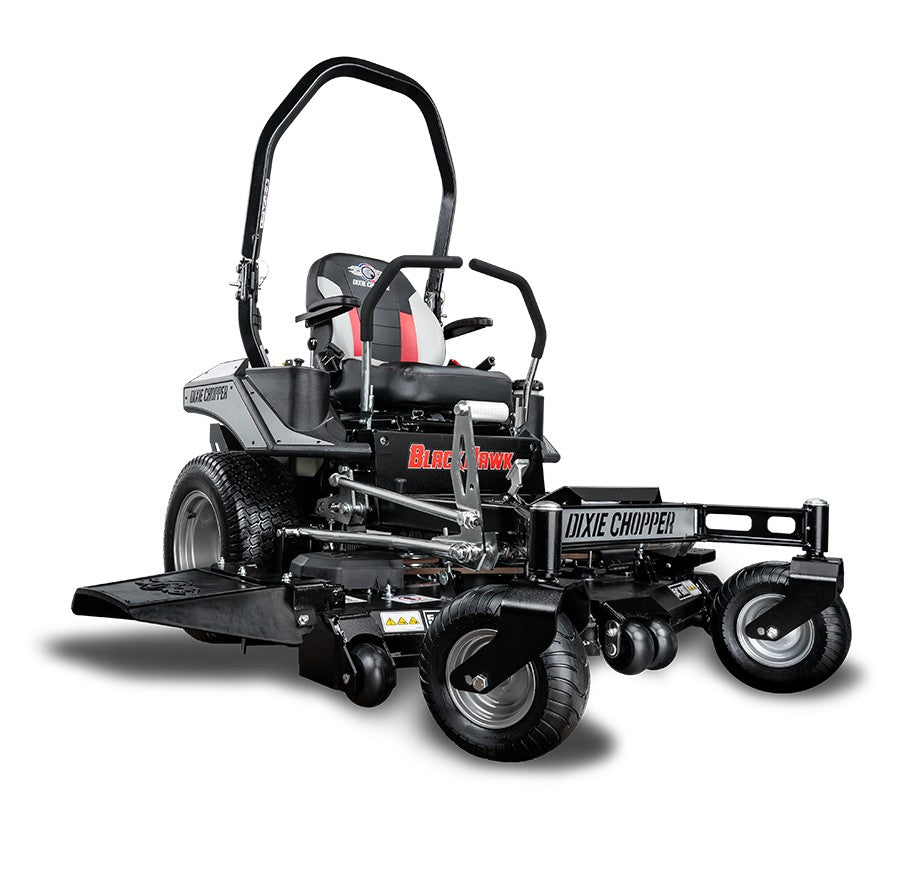

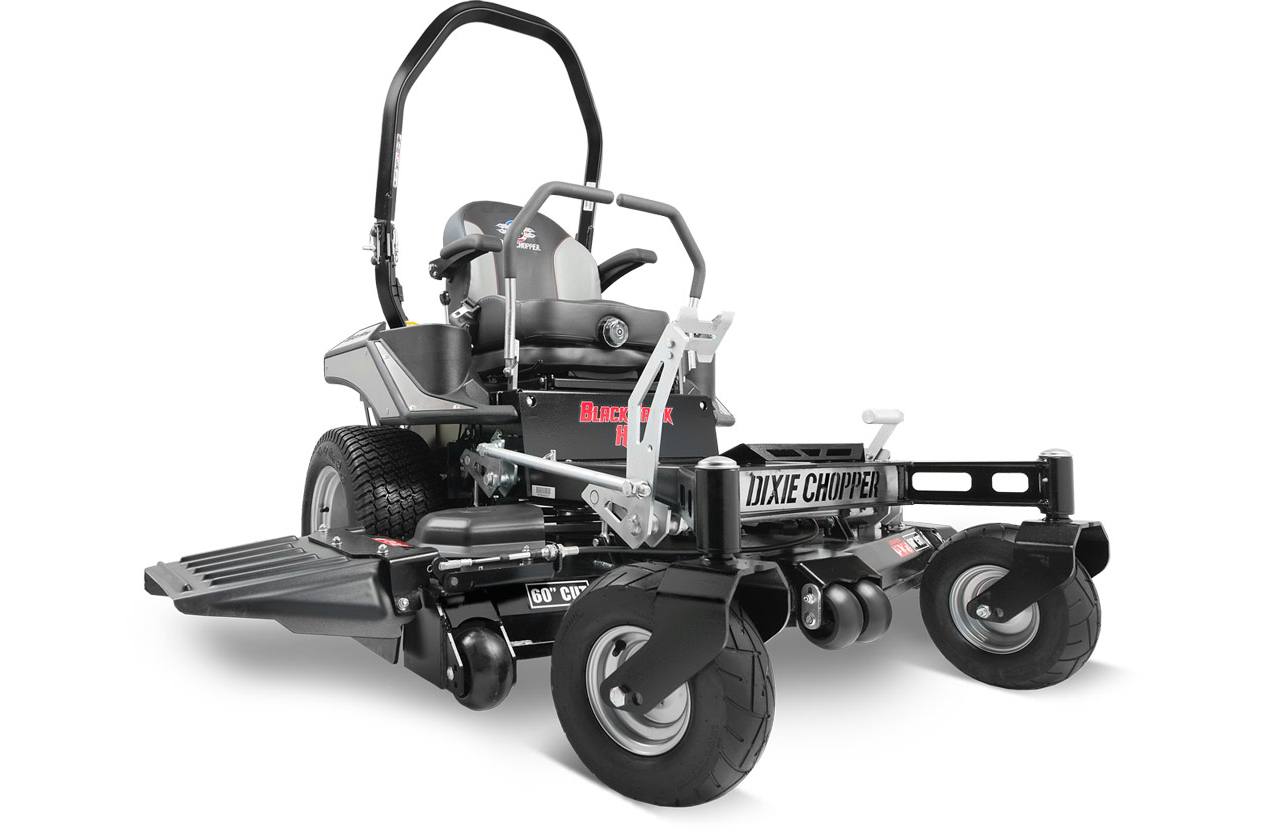

The BlackHawk HP provides the superior mowing experience with advanced operator controls, commercial grade components, and best-in-class performance and comfort.

Features:

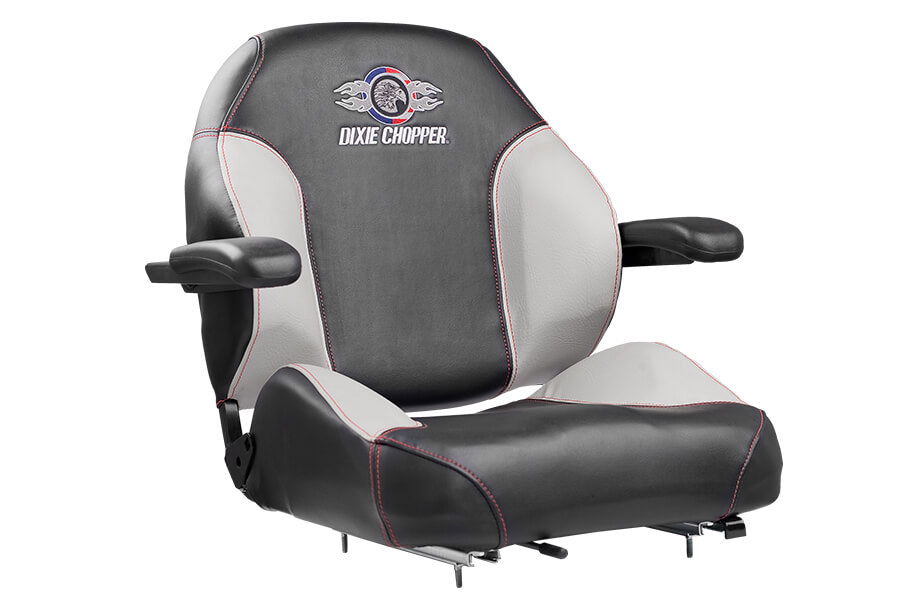

• Total Comfort – Full suspension seat with padded design provides lateral stability and comfort.

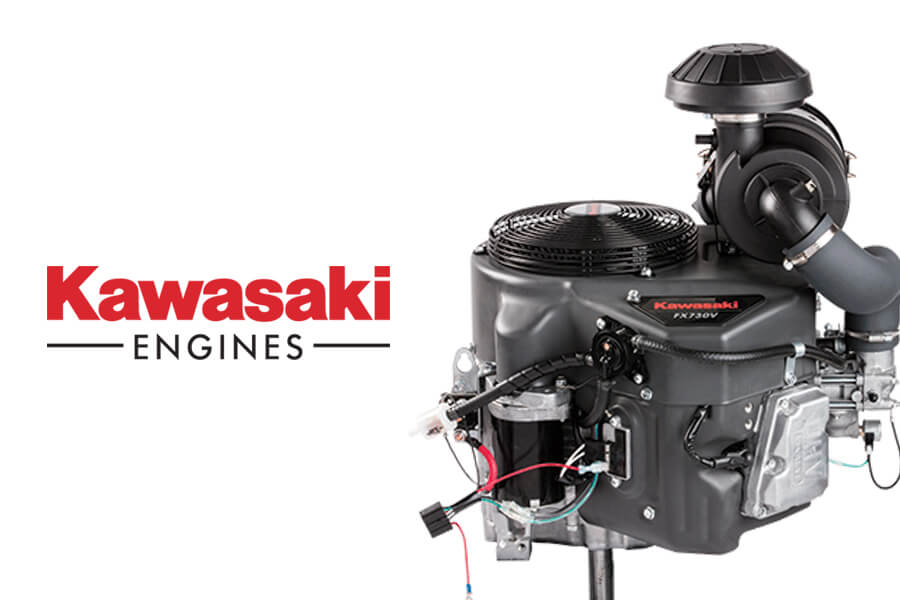

•  Proven Power – Equipped with the industry preferred Kawasaki® FX engine for reliability and performance year after year.

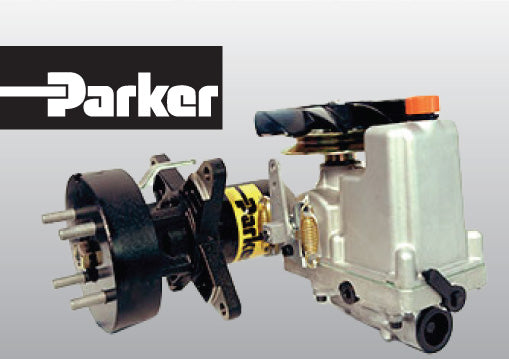

•  Smoothest Steering – The Parker® transmissions offer super smooth steering up to 10 miles per hour in a compact, quiet, and efficient drivetrain.

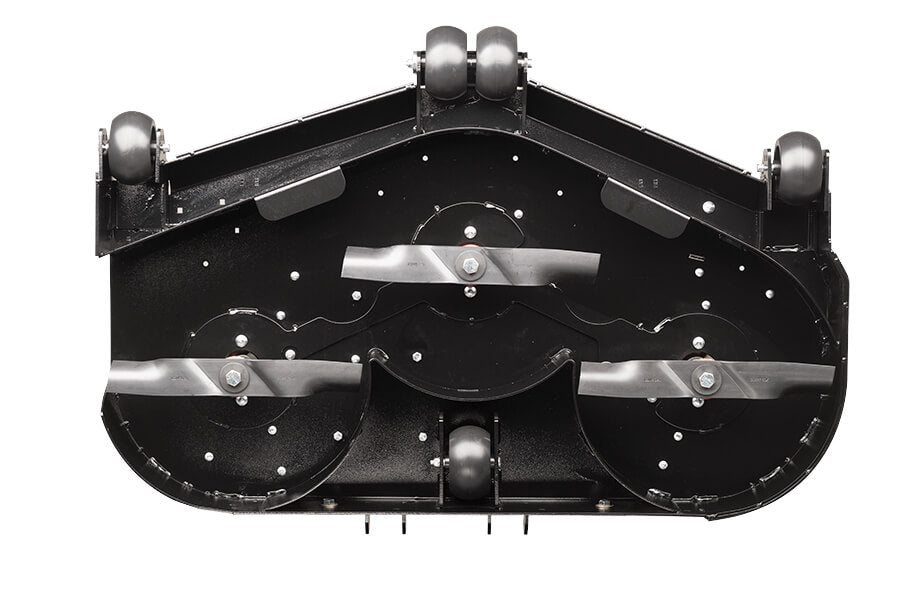

•  Robust Deck – Offered in three cutting widths (48", 54", and 60"), the BlackHawk HP deck features a deep 7 gauge shell and abrasion resistance baffles to outlast the competition in extreme conditions.
• Peer® Turf Xtreme™ Spindles – Maintenance free and constructed of high-strength ductile iron.
•  Ready to Accessorize – The BlackHawk HP is ready to add a suite of accessories including Springer Forks, electric deck lift, light kit, striping kit, and more.

Specifications:

Engine

• Manufacturer: Kawasaki® FX
• Horsepower: 23.5 HP
• Displacement: 726 cc
• Air Cleaner: 4-stage
• Cooling: Air-cooled
• Starter: Electric
• Engine Warranty: 3-Year

Drive System

• Type: Dual Hydrostatic Parker® HTJ
• Ground Speed: 10 mph
• Parking Brake: Integrated in transaxle
• Towing Capacity: 200 lbs

Mower Deck

• Deck Size: 60"
• Acres/Hour: 4.8
• Cutting Height: 1" – 5"
• OCDC (Operator Controlled Discharge Chute): Optional (foot-operated)

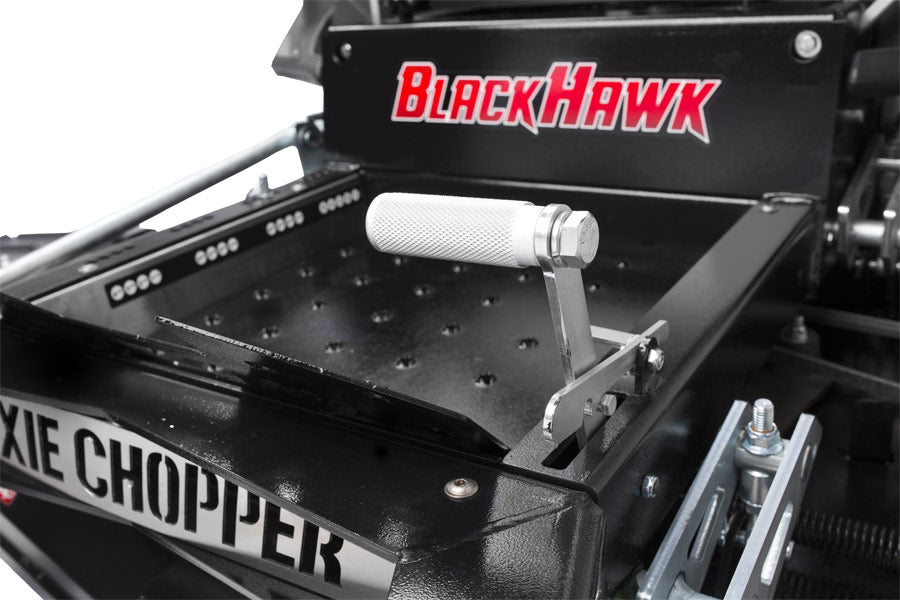

• Deck Height Adjustments: Manual lift, 1/4" increments
• Electric Lift: Optional
• Deck Engagement: Ogura® (150 ft-lb)
• Deck Construction: 7-gauge formed & welded, Abrasion-resistant baffles
• Blades: (3) – 2.5" x 20.5"
• Blade Tip Speed: 18,500 fpm
• Spindles: 1.25" effective diameter machined shaft
• Spindle Housings: Peer® Turf Xtreme™ ductile iron (sealed)
• Anti-Scalp Rollers: 4
• Pulleys: 7 ga vented split steel deep groove

General Features

• Battery: 12V, 350 CCA

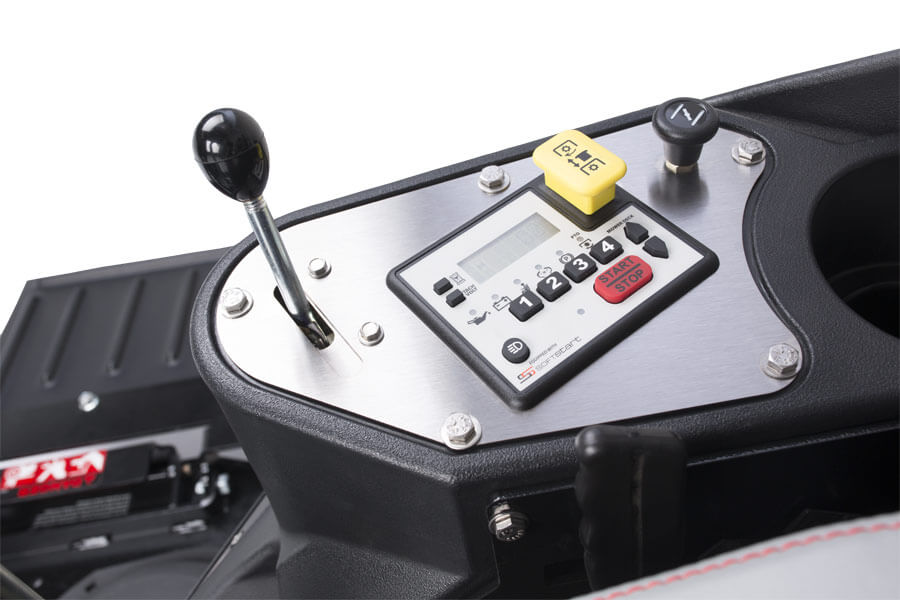

• Display: Tachometer, Hour Meter, Fuel Gauge
• Fuel Capacity: 7 gallons
• Rear Tires: 23 x 10.5-12 GrassMaster
• Front Tires: 13 x 6.5-6
• Frame: Welded C-channel, 7-ga formed
• Floor Pan: Removable, steel
• Seat: Full suspension, adjustable with armrests
• Springer Forks: Optional

Dimensions & Weight

• Overall Height (ROPS Down): 50"
• Overall Height (ROPS Up): 71"
• Overall Width (Chute Down): 76"
• Overall Width (Chute Up): 61.9"
• Overall Length (ROPS Down): 85.8"
• Overall Length (ROPS Up): 81.3"
• Weight: 1,140 lbs

Width	Weight	Height	Length
0 Inch	1140 Pounds	0 Inch	0 Inch
