Description:

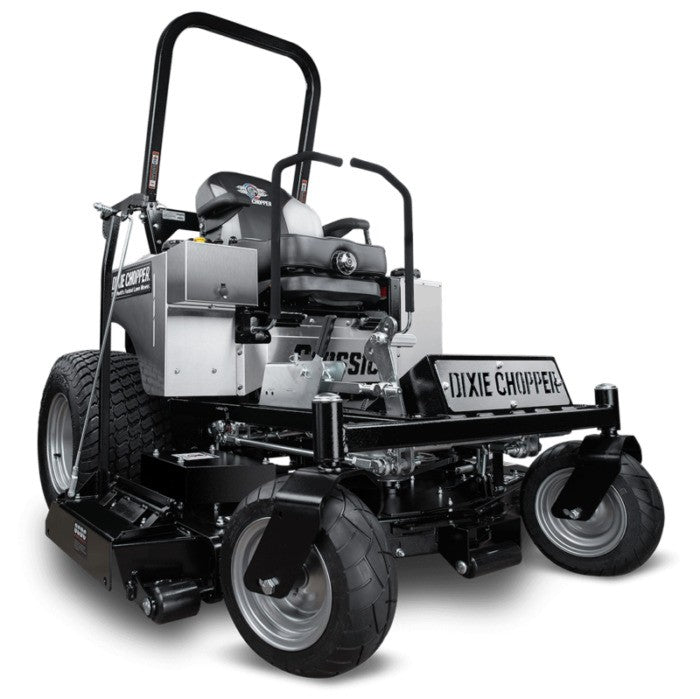

The Classic is the perfect defi nition of a workhorse mower with the combination of commercial quality and industrial features.

Features:

• Power and More Power – Powered by Kawasaki® FX or Vanguard® Big Block EFI engines up to 40 horsepower to power through tough jobs.

• Lifetime Warranty Frame – The strongest frame in the industry with a 1"x 2" steel-tube chassis guaranteed not to break.

• T-Gear Box – Eliminates side-load on pumps and backed with a 5-year or 3,000 hour warranty.

• Complete Discharge Control – An operator controlled discharge chute (OCDC) allows you to switch from normal discharge to closing the chute on the fly, saving you time on clean-up.

•Tried and True Decks – Offered in two productive deck widths (60" and 72") the Elite X Deck has been the staple piece to Dixie Chopper's reputation of cleanly cutting all types of grass.

• Comfort Ride – Our suspension seat comes standard on every Classic model to provide a smooth ride in the roughest terrain.

Specifications:

Engine: 40 HP EFI Vanguard®

Deck Size: 72"

Engine

• Manufacturer: Vanguard® EFI
• Horsepower: 40 HP
• Displacement: 993 cc
• Air Cleaner: 4-stage w/ Turbinator® Pre-Cleaner
• Cooling: Air-cooled
• Starter: Electric
• Warranty: 3-Year

Drive System

• Pumps: Hydro-Gear® 16cc
• Wheel Motors: Parker® DG280
• Ground Speed: Up to 12 mph
• Parking Brake: Automotive Style
• Towing Capacity: 2,000 lbs

Mower Deck

• Size: 72"
• Acres/Hour (approx.): 7
• Cutting Height: 1.25" – 5"
• OCDC (Operator-Controlled Discharge Chute): Standard
• Deck Height Adjustment: Manual lift, 1/4" increments (Electric lift optional)
• Deck Engagement: Ogura® 250 ft-lbs
• Construction: 7 ga formed & welded
• Top Plate: 7 ga bolted
• Blades: (3) – 24" x 2.5"
• Blade Tip Speed: ~18,000 fpm
• Spindles: 1.25" effective dia. machined shaft
• Spindle Housings: Peer® Turf Xtreme™ ductile iron (sealed)
• Spindle Cooling Fans: Standard (3)
• Anti-Scalp Rollers: 5
• Pulleys: Vented split 3/16" steel deep groove

General Features

• Battery: 12 Volt, 350 cca
• Digital Display: Tachometer, hour meter, voltmeter, service alerts
• Fuel Capacity: 12 gallons
• Rear Tires: 25 x 12-12 GrassMaster
• Front Tires: 15 x 6-8 (run-flat)
• Frame: Welded 1" x 2" tube, 7 ga formed
• Floor Pan: Removable steel
• Seat: Full suspension, adjustable with armrests
• Springer Forks: Optional

Dimensions

• Overall Height: 53"
• Height (Rollbar Up): 78"
• Overall Width: 76"
• Length (Standard): 80"
• Length (Rollbar Down): 83"
• Weight: 1,425 lbs
