Description:

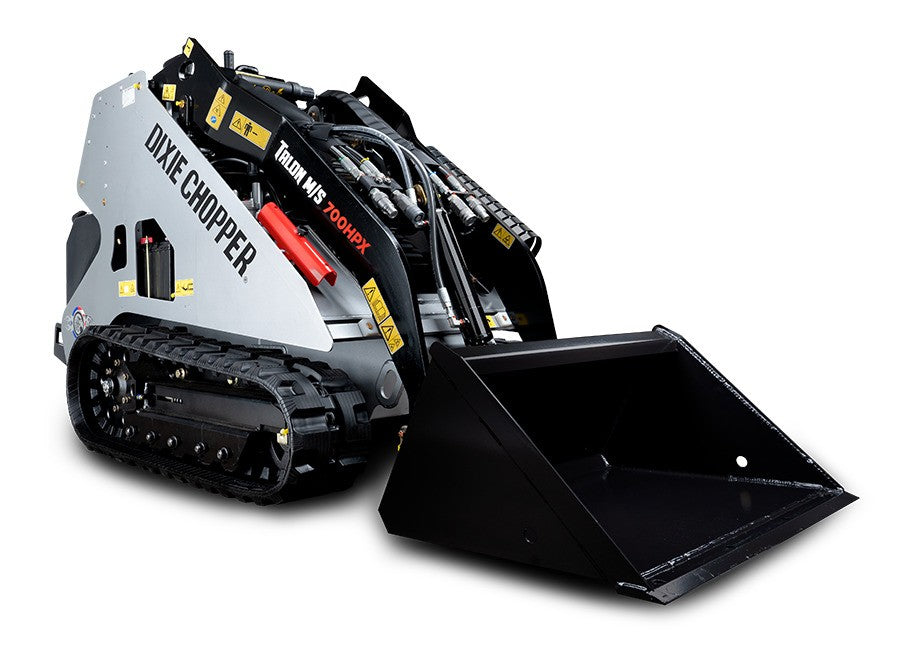

Dixie Chopper is now known for more than mowers. Meet the Talon M/S, a heavy-duty mini skid steer built for commercial contractors who do more than mowing. This new model is loaded with features, including:

Features:

• Diesel Power – Reliability and efficient power comes standard with the 24.8 horsepower Kubota engine.
• Gate Friendly – The 700HPX offers a hydraulically expandable undercarriage to retract the unit width less than 36" to fi t in tight spaces
• Hydraulic Flow – Delivering up to 11.3 gpm to the auxiliary hydraulic flow, the Talon M/S attachments make easy work of tough jobs.
• All-Day Comfort – The spring assisted stand-on platform design with generous hip padding provide operator comfort from start to finish.
• Productivity – With the expandable undercarriage and speeds up to 4.5 mph, operators can safely and quickly get work done in record time.
• Compatibility – Universal compact utility loader mounting plate and quick-attach system to easily switch between most standard attachments.

Specifications:

Engine

• Manufacturer: Kubota®
• Horsepower: 24.8 HP
• Fuel Type: Diesel
• Fuel Capacity: 9 gallons
• Cooling: Liquid-cooled
• Starter: Electric
• Engine Warranty: 2-Year

Hydraulic System

• Hydraulic Capacity: 24 gallons
• Total Flow: 27.1 GPM
• Auxiliary Flow (High/Low): 11.3 / 8.7 GPM
• Drive Flow: 7.1 GPM
• System Pressure: 3,000 PSI

Tracks

• Track Gauge: 33.75"
• Track Width: 9"
• Ground Speed: 4.5 MPH
• Ground Pressure: 4.21 PSI

Dimensions

• Weight (No Attachment): 2,880 lbs
• Length (No Attachment): 77"
• Length (With Bucket): 96"
• Width (Retracted): 34.5"
• Width (Extended): 43.5"
• Height (Boom Lowered): 54"
• Height (Boom Raised): 98"
• Hinge Pin Height: 77"
• Dump Height: 60"
• Dump Angle: 37°
• Reach: 34"
• Tip Capacity: 2,020 lbs
• Operating Capacity (35% of Tip Load): 707 lbs
• Ground Clearance: 5"
