Description:

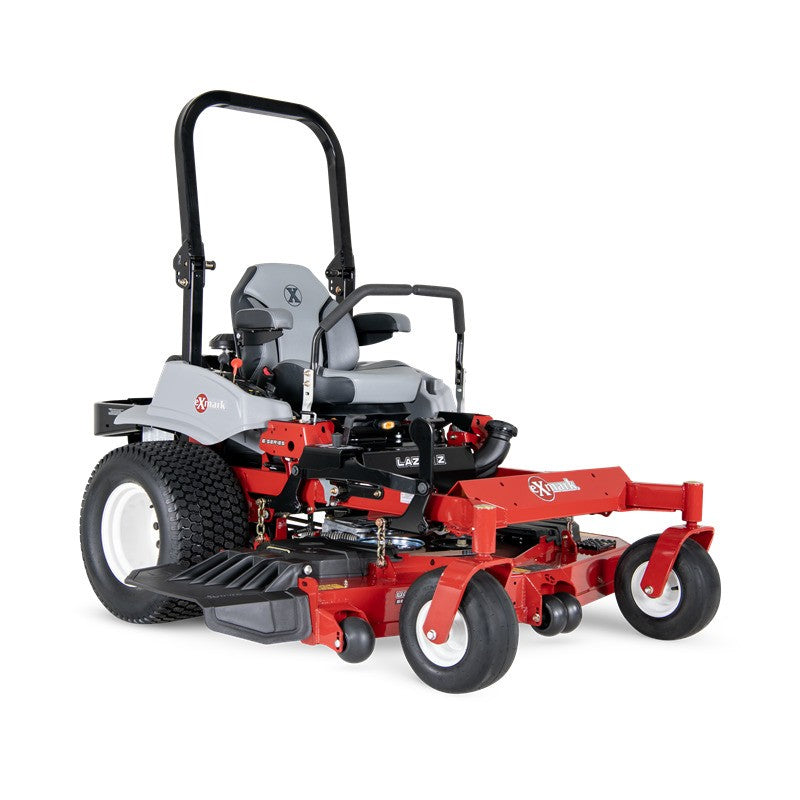

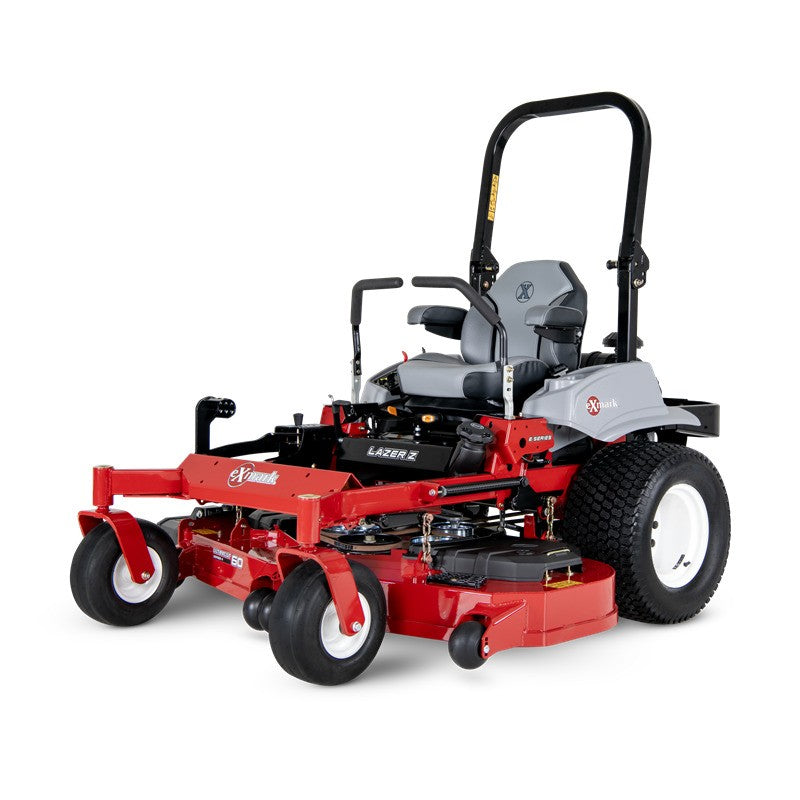

As the most affordable model in the Lazer Z line, the all-new 2025 Lazer Z E-Series delivers an unbeatable combination of cut quality, productivity, durability and value. Select from 48-, 52-, or 60-inch UltraCut Series 4 cutting decks, all equipped with a newly redesigned discharge chute that distributes clippings over a wider area. A choice of twin-cylinder Kawasaki, Kohler, or Vanguard twin-cylinder commercial engines are available, all equipped with heavy-duty external air filters. Power is delivered through unitized Hydro Gear pump and motor units for up to 11 mph forward ground speeds. A new full-suspension operator seat increases operator comfort during long work days.

Specifications:

• UPC: 193308242217
• Width / Cutting Deck: 52"
• Drive: Hydro-Drive
• Starter: Electric
• Steering Control: Hydraulically dampened twin levers, adjustable fore and aft, with 2-position height adjustment
• Caster Forks: 0.50" thick caster yoke arms
• Front Caster Tires: 13 x 6.5-6, smooth tread, pneumatic, sealed ball bearings
• Drive Tires: 24 x 9.5-12, 4 ply Super Turf TL
• Safety Package: Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators
• Parking Brake: Lever actuated internal wet disc brake
• Tractor Frame: Unibody, welded, heavy-duty 1.5" x 3" tubular steel
• Blade Spindles: No maintenance, sealed spindles, 7.75" diameter cutter housing, 25mm spindle shaft
• Electrical: 12-volt battery with 15-amp alternator
• Standard Features: Engine hour meter, cup holder
• Seat: Deluxe suspension seat, foam flip-up armrests, integral safety switch, adjustable fore and aft
• Transmission Speeds: Infinitely Variable
• Engine Brand: Kawasaki®
• Engine Model: FX801V
• Engine Displacement: 852cc
• Engine Series: V-Twin
• Fuel System: Carbureted
• Speed: 0–11.0 mph forward, 0–6.0 mph reverse
• Engine Speed: 3750 RPM
• Engine Spec: FX801-AS31-R
• Air Filter: Heavy-duty canister air filtration system
• Fuel Capacity: 9.5 gallons
• Drive Description: Dual Hydro-Gear ZT-4400 hydrostatic transmission
• PTO Engagement: MagStop Electromagnetic 175 ft-lb clutch
• Fuel Type: Gas Carbureted
• Fuel Indicator: Mechanical float
• Drive Wheel Release: Allows movement without engine running
• Deck Lift: Foot-controlled, changes cutting height, lifts deck
• Carb Compliant: No
• ROPS: 2-post foldable ROPS standard with seat belt and latch
• Deck Style: Floating Deck
• Deck Construction: 10-gauge alloy top, 7-gauge side skirt, and reinforced spindle mounting locations
• Cutting Heights: 1.5" to 5.5" in 0.25" increments
• Blade Tip Speed: 18,500 fpm
• Blades: 3 blades, 18.00" length
• Width: 64.7"
• Height: 70.1"
• Curb Weight: 1037 lbs
• Length: 84.6"
