Description:

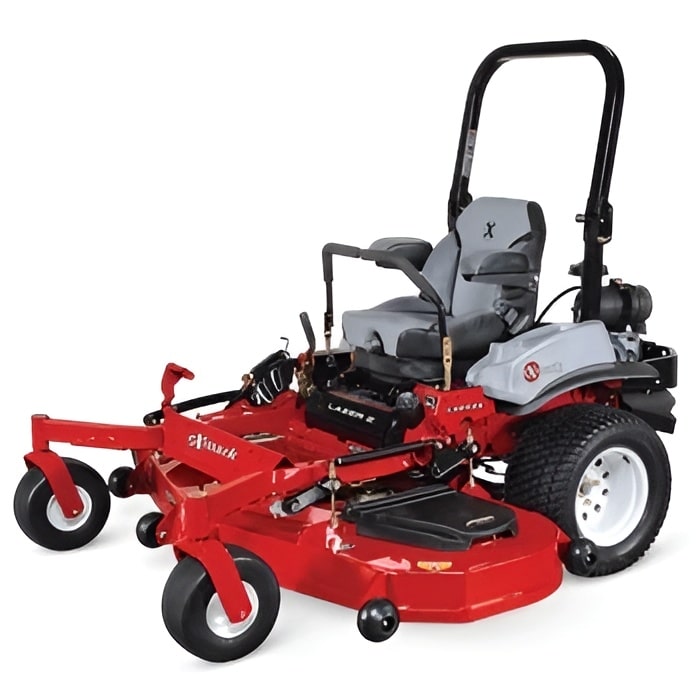

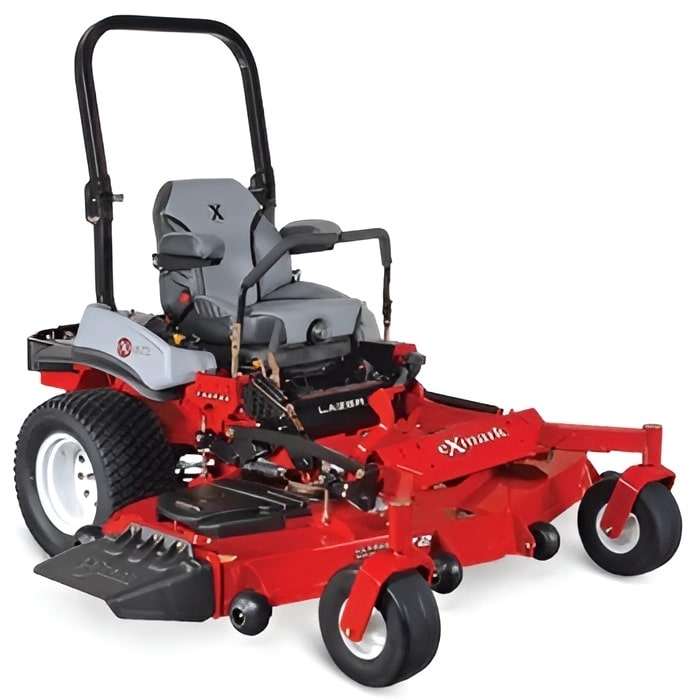

With options to meet the needs of the most demanding landscape maintenance professionals, our top-rated Exmark Lazer Z X-Series zero-turn mowers represent the state-of-the-art in commercial mowers. Cutting deck options include our massive 96-inch UltraCut Flex Wing cutting deck and select models equipped with our exclusive cut quality enhancing Adapt Technology. Choose from rugged commercial-grade engines, including high-efficiency Electronic Fuel Injection (EFI) options equipped with our exclusive EGov and RED Technology, which can boost fuel efficiency by up to 41%. Lazer Z X-Series zero-turn mower models are available with UltraCut Series 6 decks in 52-, 60-, and 72-inch cutting widths, with or without Adapt Technology, or the 96-inch UltraCut Flex-Wing rear discharge cutting deck. Regardless of the combination you choose for your Exmark Lazer Z zero-turn mower, you’ll ride in unmatched comfort thanks to our full-suspension seating system and smooth, easy-to-use controls that offer precision maneuverability. And from a long-term value standpoint, nothing beats the Exmark Lazer Z X-Series mower. It's the perfect combination of power, productivity, and durability. That's why it's our top-of-the-line gasoline-powered mower and should be at the top of your list.
Features:
- UltraCut Series 6 Deck- This full-floating deck uses double-row bearings with a splined blade driver to stop bolt tightening on impacts. And, our patented bearing design on idler arm pivots only needs annual service. (96" Flex Wing Deck is a rear discharge deck.)
- Adapt Your Cut- Achieve an optimal cut in a wider variety of conditions with our exclusive Adapt Technology. Adjust deck rake without tools, from the operator seat, to customize deck performance. Available on select 2023 Lazer Z X-Series models.
- A New Level of Comfort- Comfort increases productivity. That’s why we designed a new, ergonomically advanced seat system featuring our exclusive Iso-Mount Seat Isolation System.
- Tool-less Belt Removal- Deck and hydro belt can be installed without using any tools.
- Oil Guard System- The Vanguard Oil Guard System increases mower uptime and decreases necessary in-season maintenance by extending oil change intervals to 500 hours, while also lowering engine oil temperature by 20-30 degrees. Available on select Lazer Z X-Series models.
- Patented RED Technology- Enabling communication and response between key systems on your mower with defined operation modes, system monitoring and clutch saver features.
- Productivity- Higher ground speeds with 16cc drive system and more power with larger engine displacements for improved productivity.
Specifications:
General
- Starter: Electric
- Drive: Hydro-Drive
- Transmission: Hydrostatic
- Transmission Speeds: Infinitely Variable
Steering & Tires
- Steering Control: Hydraulically dampened twin levers (adjustable fore/aft, 3-position dampers, 2 height positions)
- Caster Forks: 0.50" thick caster yoke arms
- Front Caster Tires: 13 x 6.5-6, smooth tread, semi-pneumatic
- Drive Tires: 24 x 12.0-12, 4-ply Turf Master®
Braking & Safety
- Parking Brake: Lever-actuated disc brake
- Safety Package: Operator Presence Controls (OPC) and drive system interlock with safety interlock indicators
- ROPS: 2-post foldable ROPS standard with seat belt and latch
Frame & Construction
- Tractor Frame: Unibody, welded, heavy-duty 1.5" x 3" tubular steel
- Deck Style: Floating Deck (UltraCut Series 6, heavy-duty spindle, side discharge standard, optional bagging/mulching)
- Deck Construction: 10-gauge top (formed and continuously seam welded), 7-gauge side skirt, 7-gauge spindle mounting for strength and weight reduction
Engine & Fuel System
- Engine Brand: Kawasaki
- Engine Model: FX921V
- Engine Series: V-Twin
- Engine Spec: FX921V-_S04-R
- Engine Displacement: 999 cc
- Engine Speed: 3,750 RPM
- Air Filter: Heavy-duty canister air filtration system
- Fuel System: Carbureted
- Fuel Type: Gas
- Fuel Capacity: 12-gallon (45.4 L), single fuel tank
- Fuel Indicator: Electronic sender
Cutting System
- Cutting Deck Width: 60"
- Cutting Heights: 1.0" to 5.5" (0.25" increments, adjustable from operator’s seat)
- Blade Tip Speed: ~18,500 fpm
- Blades: 3 blades (20.50" each)
Electrical & Features
- Electrical System: 12-volt battery with 15-amp alternator
- PTO Engagement: MagStop Electromagnetic 250-ft-lb clutch with spot brake
- Drive Wheel Release: Allows unit movement without engine running
- Deck Lift: Foot-controlled (changes cutting height, maneuvering, transport position, equipped with Adapt system)
- Standard Features: Engine hour meter, cup holder
Comfort & Seat
- Seat: Deluxe two-tone bolstered suspension seat with Elastomeric Vibration Control, isolation system for all three planes of motion, fore-aft slide, and seat flip-up
Dimensions & Weight
- Width: 72.8" (184.9 cm)
- Height: 70.5" (179.1 cm)
- Length: 83.1" (211.1 cm)
- Curb Weight: 1,256 lbs
| Width | Weight | Height | Length |
|---|---|---|---|
| 72.8 Inch | 1256 Pounds | 70.5 Inch | 83.1 Inch |
