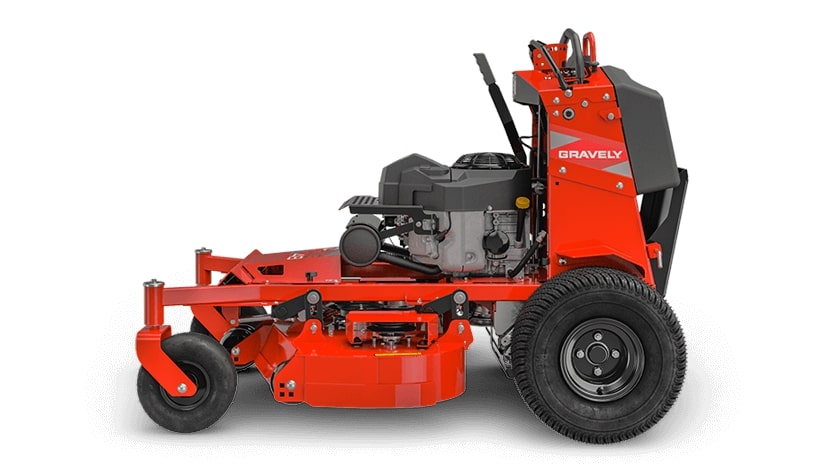

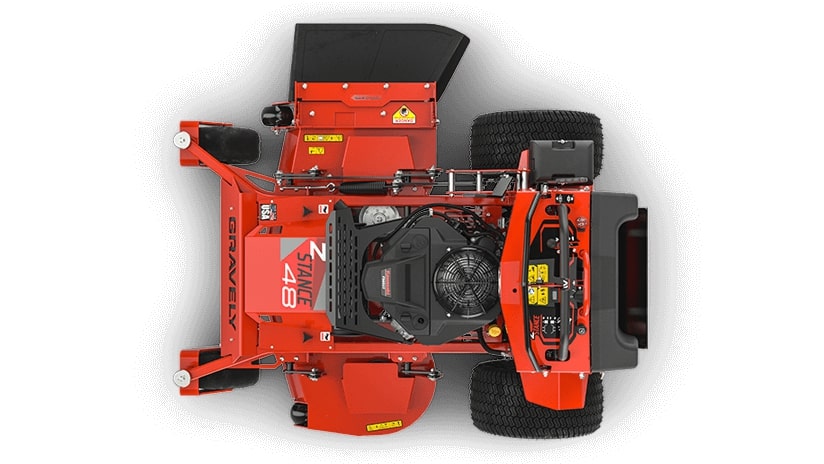

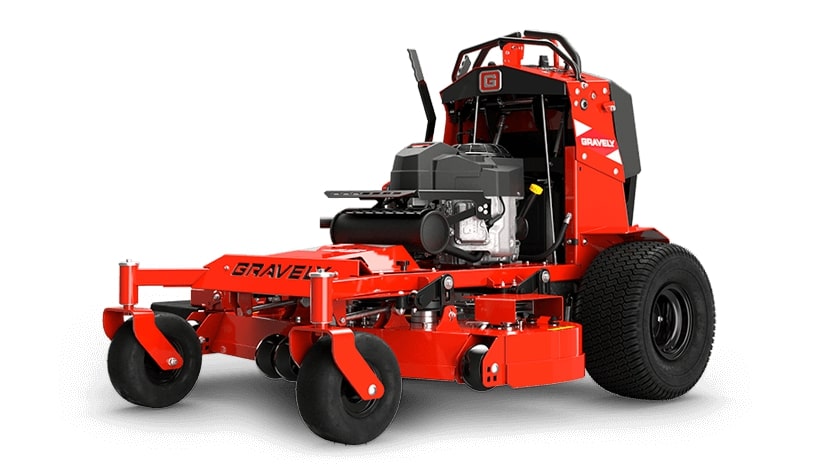

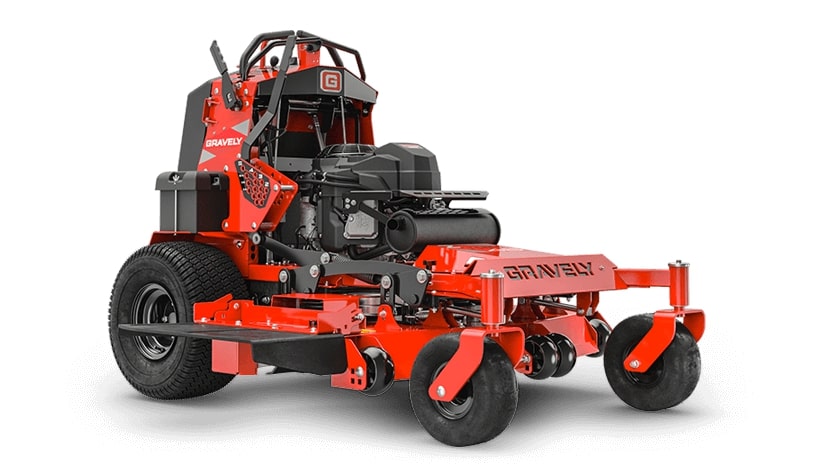

Description:

You’ll ride with pride as you deliver that perfect Gravely cut on the Z-Stance. This powerful commercial stand-on mower is easy to maneuver and a breeze to maintain. It’s three deck sizes make quick work of a corporate campus or a gated backyard. You take a stand for comfort, ingenuity, and durability when you’re on a Z-Stance.

Specifications:

Engine

• Type: Kawasaki® FS651V
• Horsepower: 22 HP
• Displacement: 44.3 in³ / 725.9 cc
• Fuel Type: Gas
• Fuel Capacity: 4.5 gal / 17 liters

Drive System

• Transmission: Hydro-Gear® ZT-3100® Transaxles
• Type: Hydrostatic
• Brake: Lever-activated parking brake
• Driver Position: Stand-on
• Forward Speed: 7 mph / 11.3 kph
• Reverse Speed: 3 mph / 4.8 kph

Wheels

• Front Wheels: 11 x 6 in
• Rear Wheels: 20 x 10 in
• Front Wheel Track: 38.5 in
• Rear Wheel Track: 46.2 in / 117.3 cm

Electric System

• Charger Type: Standard
• Battery Capacity: 300 CCA
• Battery Voltage: 12V
• Battery Type: Lead-acid (Maintenance-free)
• Battery Size: U1
• Number of Batteries: 1

Deck

• Size: 48 in / 121.9 cm
• Coverage Rate: 3.4 acres/hour
• Spindle Type: Mechanical
• Material: 10-gauge steel
• Construction: Fabricated X-Factor® 3
• Discharge: Side discharge
• Cutting Height Range: 1.5 – 5 in (3.8 – 12.7 cm)
• Cutting Width: 48 in / 121.9 cm

Dimensions

• Weight: 744 lb
• Length: 65.5 in / 166.4 cm
• Width (Chute Up): 49.5 in / 125.7 cm
• Width (Chute Down): 61 in / 154.9 cm

Width	Weight	Height	Length
0 Inch	744 Pounds	0 Inch	0 Inch
