Description:

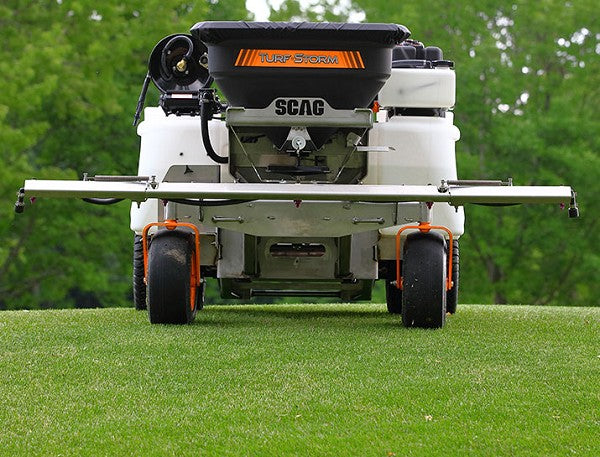

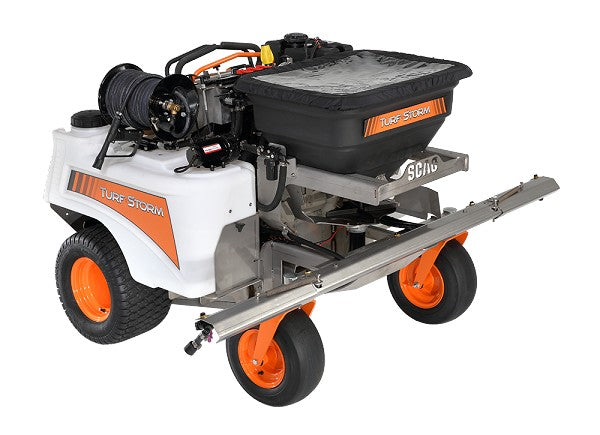

he Turf Storm XL and Turf Storm are ready to help you handle any job. With a 220-lb spreader capacity, 60-gallon sprayer capacity and an 8-ft spray boom, the Turf Storm XL can handle even the largest jobs. Conversely, the Turf Storm, with its 120-lb spreader capacity and 30-gallon sprayer capacity, is ideal for working on smaller residential properties. And, its 35.5-inch width (65-inch boom folded in) lets it fit through any standard gate. A 75-foot hose reel (Turf Storm XL) or 15-foot hose reel (Turf Storm) allows you to reach tough spaces.

Features:

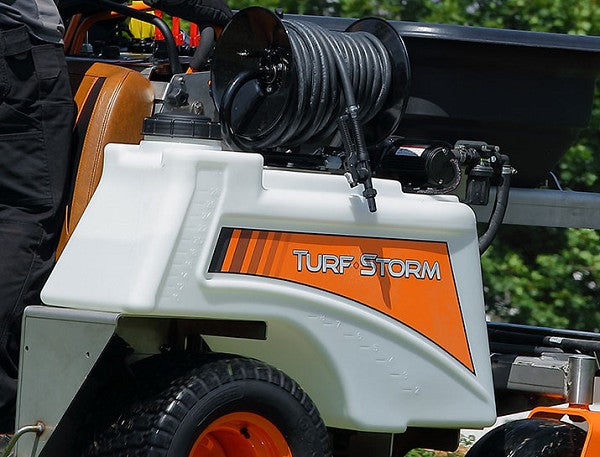

• Large Liquid Capacity: 60-gallon (Turf Storm XL) or 30-gallon (Turf Storm) total liquid capacity keeps you spraying longer. Highly translucent tanks with raised measurement indicators allow for accurate fill levels. Spray booms measuring 8-feet-wide with five nozzles (Turf Storm XL) or 65-inches wide (Turf Storm) allow for spraying widths of 2, 6, 8 or 10 feet (Turf Storm XL) or 2, 6 or 8 feet wide (Turf Storm). A 75-foot hose reel (Turf Storm XL) or 15-foot flex hose (Turf Storm) allows you to reach tough spaces.
• Large Hopper Capacity: The 220-pound hopper (Turf Storm XL) or 120-pound hopper (Turf Storm) dry/granular capacity paired with a high-torque electric spreader motor help deliver up to a 25-foot spread width.
• Dynamically Balanced: The dynamically balanced machine ensures sure footing, eliminating the need for locking front casters (Turf Storm XL only).
• Quick and Efficient Drain Plug: Drain plugs at the lowest part of the tanks allow for quick and convenient tank draining and cleaning in between the uses.
• High Torque Electric Spreader Motor: The high torque electric spreader motor reduces system heat when compared to hydraulic spread motors used in the market place. As a result, you can more easily control your spread pattern resulting in a more accurate application of the granular products.
• Ergonomic Operator Control Station: The ergonomic drive control lever design provides incredible ease-of-use. All the spreader and sprayer controls are within easy, fingertip reach.
• Spacious Operator Platform: The spacious operator platform features an extra-large operator comfort cushion paired with coil-spring suspension for a smooth ride.
• Powerful and Efficient: 23 horsepower Briggs Vanguard® engine delivers ample power, along with exceptional efficiency and dependable performance. 50-amp charging system ensures dependable spreader operation, battery life and power to accessories like 7gpm pump, Lights & Foam Marker.
• Make Maintenance A Breeze: Removable cushion and open lower area allow quick and easy service access to the hydro drive pumps, hydro reservoir and other mechanicals.

Specification:

• Hopper Capacity: 60-Gallon Capacity, 220-lb Hopper
• Spreader Motor: High-Torque Electric
• Spread Width: Up to 25 ft.
• Deflector: Mechanical Lever Activation of Stainless Steel Door
• Hopper Cover: Included

Sprayer Specifications

• Spray Capacity: 60-gallon; Dual 30-gallon tanks. High visibility tanks.
• Hinged Boom Arms: 8-foot wide, 5 nozzles
• Spray Width: 2, 6, 8 or 10 ft
• Breakaway Booms: Standard
• Coil Hose: Heavy duty, 75-foot high-pressure hose
• Pump Capacity: 5 gpm; 7 gpm optional accessory
• Model: STS60XL-23BV
• Total Fuel Capacity: 5 gallons
• Front Wheel(s): 16" x 6.5"-8", pneumatic
• Rear Wheels: 20" x 12"-10", 4-ply
• Currently Available Accessories: Foamer Kit, LED Light Kit and 7 GPM pump
• Engine: Briggs Vanguard™
• Horsepower: 23 hp
• Charging System: 12 Volt, 50 Amp
• Drive System: Dual Pump and Motor
• Pumps: Hydro-Gear: PG Series 10 cc
• Motors: Parker TG Series: 14.5ci
• Ground Speed: Up to 8.5 MPH forward. Up to 5 MPH reverse
• Parking Brake: Hand Lever
• Length: 67"
• Width (spray booms in): 54"
• Width (spray booms out): 82"
• Height: 50"
• Weight (dry): 965 lb
• Warranty: 2-Year Commercial & Non-Commercial Warranty; 90-day Rental
