Description:

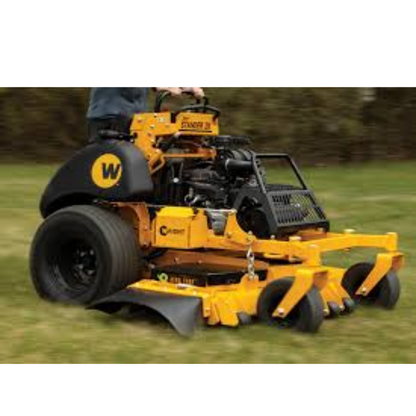

Kawasaki FX820 34.5 HP EFI

PRODUCTIVITY

Forward Speed: 12.5 MPH

Reverse Speed: 7 MPH

Fuel Capacity: 15.5 GAL

Max Acres Per Hour: 7.7

DRIVE SYSTEM

Type: Hydro

Motor: Hydro-Gear 15 cu in. Integrated Brake, Individual Hydro Reservoir

Pump: Hydro-Gear 16 cc with tapered shaft & fans

DECK

Deck Size: 61"

Deck Type: Floating-side discharge

Configuration: Aero Core

Lift System: Quick-Cut

Blade Quantity: 3

Blade Length: 21"

Deck Min. Cut Height: 1.5"

Deck Max. Cut Height: 5.5"

Steel Gauge: 7 Gauge

Spindle Type: Ductile Iron

DIMENSIONS & WEIGHT

Weight: 1160 LB

Length: 70"

Width w/ Deflector Down: 75"

Width w/ Deflector Up: 62"

REAR WHEELS

Rim Diameter: 12"

Tire Diameter: 24"

Tire Width: 12"

CASTER WHEELS

Rim Diameter: 6"

Tire Diameter: 13"

Tire Width: 6.5"
